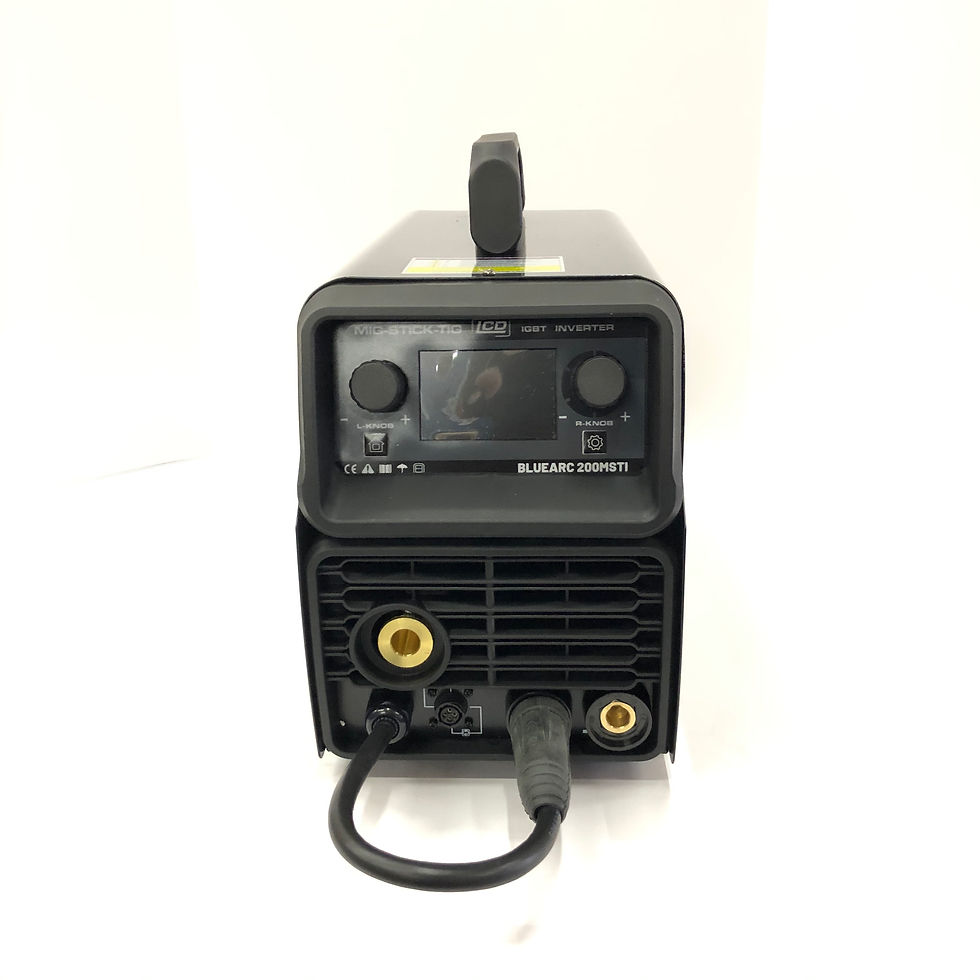

Welding Multi-Process DC Inverter 200MSTI Blue Demon

Specifications:

• Power Supply Voltage:  Single-phase 220V

• Input current (a): 36

• Power supply capacity: (KVA)

• Current Adjustment range (a): 50-200

• Output voltage (v):  15-24

• Rated output current (a):  200

• Rated output voltage (v):  24

• Rated output duty cycle (%):  30

• Power factor:  0.75

• Efficiency (%):  85

• Wire feeder type:  External/Internal

• Post Flow Time (s):  1

• wire diameter mm: .6/.8/1.0

• machine size mm: 480x310x430

• Machine weight kg: 17

• plate thickness mm: greater than .8

• Insulation class: F

• protection class: IP21S1

Features:

• Multiprocess GMAW-FCAW-GTAW-SMAW

• 2" x 3" LCD screen with user friendly interface

• Synergic settings

• Tweco style back end connections and consumables

• IGBT inverter technology

• Closed feedback circuit. invariable voltage output and ability to balance voltage up to greater than 15%

• Electron reactor control

• Welding voltage can be preset and the voltage displays the preset voltage value when not welding.

• Both welding current and welding voltage can be viewed at the same time

• Burn back time is adjustable

• Slow wire feeding during arc start

• Wire feeding part is separated from the welding machine, wide welding operation range

• Small size, light weight (38lbs) easy to operate and economical.
