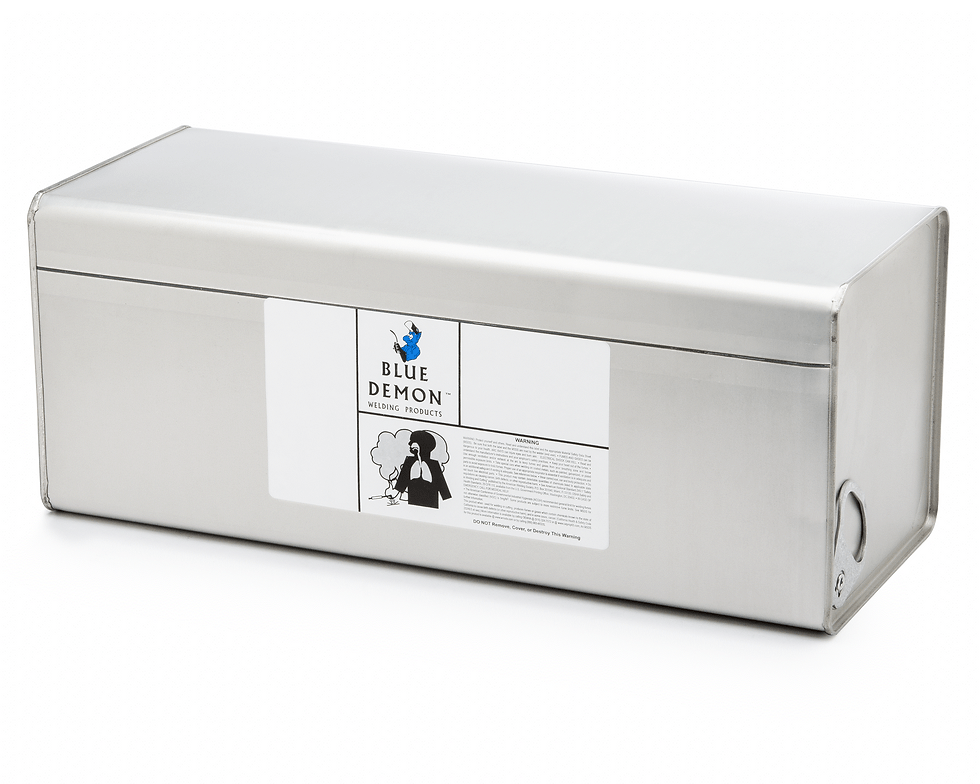

E6010 Carbon Steel Pipe Welding Electrode Blue Demon

E6010 is an all position, cellulosic electrode that has a quick-starting, steady, and deep penetrating arc. It produces x-ray quality welds in flat, horizontal, overhead, vertical-up, and vertical-down positions. E6010 was developed for the pipe welding industry and is recommended for welding API grades A25, A, B, and X42 pipe and general structural fabrication.

Typical Applications • General-purpose fabrication • Maintenance welding • Out-of-position X-ray welds • Construction and shipbuilding • Pipe welding • Vertical and overhead plate welding

AWS Specification AWS A5.1/A5.1M:2004 AWS Classification E6010

Welding Current

DCEP

Typical Wire Chemistry C 0.20 Mn 1.20 Si 1.00 P *N.S. S *N.S. Ni 0.30 Cr 0.20 Mo 0.30 V 0.08

Combined Limit for Mn+Ni+Cr+Mo+V *N.S.

Typical Mechanical Properties (As Welded) Yield Strength, ksi 48 Tensile Strength, ksi 60 Elongation%, min 22 Welding Positions F,V,OH,H

Available Diameters 3/32", 1/8", 5/32" & 3/16"

Operating Range in Amps 3/32" 40 - 80 1/8" 75 - 125 5/32" 110 - 170 3/16" 140 - 215

*N.S. means Not Specified
