Blue Arc 200STI AC/DC Stick-TIG Inverter Welding Machine, 200AMP

Blue Arc 200STI AC/DC Stick-TIG Inverter Welding Machine, 200AMP

$999.00Price

Specifications:

  • Input Voltage (V):  110V/22DV
  • Frequency (HZ):  50/60
  • Power Capacity (KVA):  7.1
  • Max Input Current (A):  31
  • TIG/STICK Current Range (A):  5-200/20-180
  • ARC Force Current Range (A):  0-100
  • Hot Start Range (A): 0-100
  • Spot Time (S):  0.0-15.0
  • No Load Voltage (V):  65
  • Rated Duty Cycle (%):  60
  • Pulse Frequency (Hz):  0.5-1000
  • Pulse Duty (%):  10-90
  • AC TIG Frequency (Hz):  .5-250
  • AC TIG Balance (%):  15-50
  • Up/Down Slope Time (S):  0.0-15.0
  • Pre/Post Flow Time (S): 0.1-15.0
  • Basic Current Range (A):  5-200
  • Remote Control:  YES
  • Memory Function:  YES
  • Efficiency Percent:  85
  • Power Factor:  0.93
  • Protection Class (S):  IP23
  • Insulation Class:  F
  • Dimensions (IN):  18.11 x 8.46 x 14.76
  • Weight (lb): 32.4

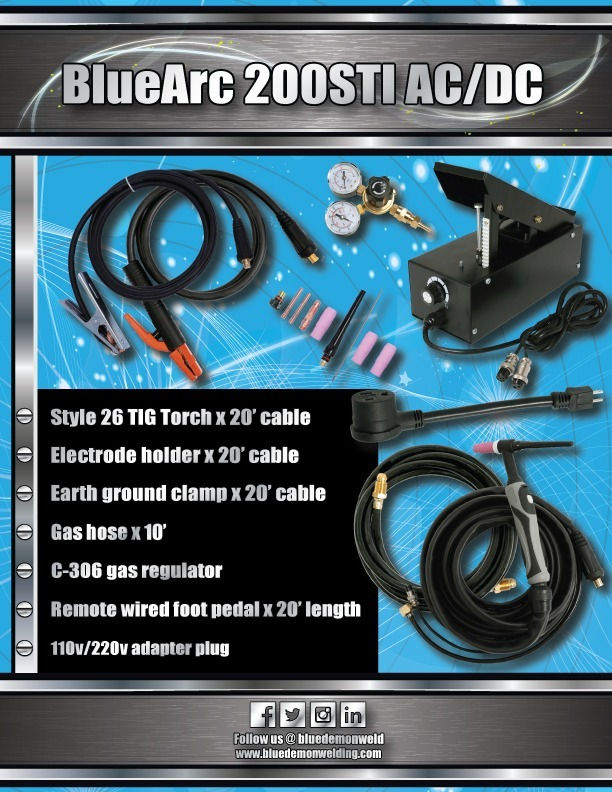

Accessories:

  • Style 26 TIG Torch x 20' Cable
  • Electrode Holder x 20' Cable

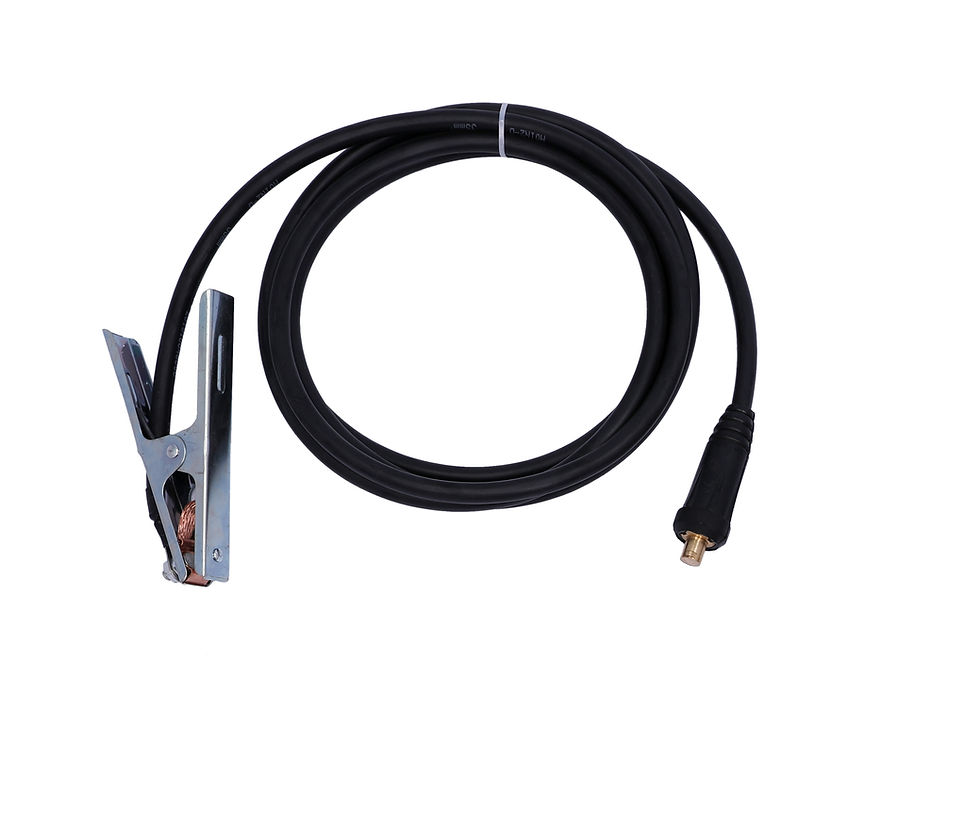

  • Earth Ground Clamp x 20' Cable
  • Gas Hose x 10'
  • C-306 Gas Regulator
  • Remote Wired Foot Pedal x 20' Length
  • 110v/220v Adapter Plug
